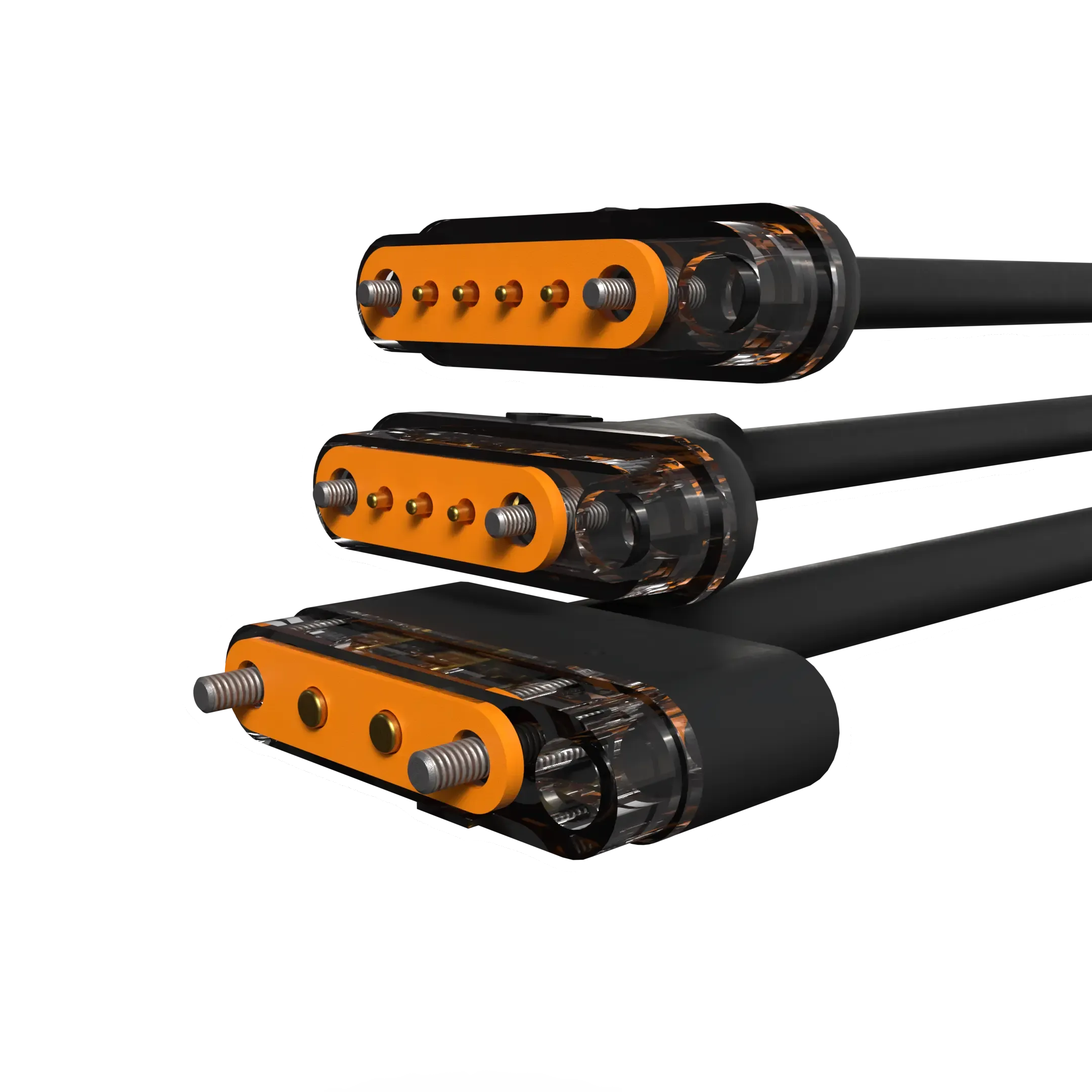

Designed with one goal in mind: underwater modularity. The AquaCore Cable Assemblies represent a standardized system prioritizing reliability and electrical safety. The design uses a miniature, head-on sealed pogo pin architecture to ensure no single-point failure modes exist.
Key Features
Why choose the AquaCore connector system?
- Safety Architecture: Individually sealed, electrically isolated pogo pins.
- Reduces risk of short circuits even in case of partial seal failure.
- Smart plug-in detection prevents energizing contacts before a full seal is formed.
- Wet-Mate Ready: Connectors can be mated while wet or submerged.
- Integrated silicone seal with head-on sealing architecture.
- Robust Design: In-house injection-molded connector body.
- Secured via two bolts for a repeatable, waterproof seal.
- Versatile Configurations: Available in 3-pin, 4-pin, and Power 2-pin variants.
Specification
| Feature | Description | Details |
|---|---|---|
| Component | AquaCore Connector | Cable Assembly |
| Mating Interface | Hybrid System | Male (Spring Pogo) / Female (Planar Pad) |
| Current Rating | High/Low Power | 1A (Data), 10A (Power) |
| Voltage Rating | TBD | Pending Certification |
| Pin Configs | Modular | 3-pin, 4-pin, Power 2-pin |
| Materials | Composite | Polypropylene, TPE, Silicone |
| Contacts | Gold-Plated | Corrosion resistant |
| Wet Mating | Supported | Safe for underwater connection |
