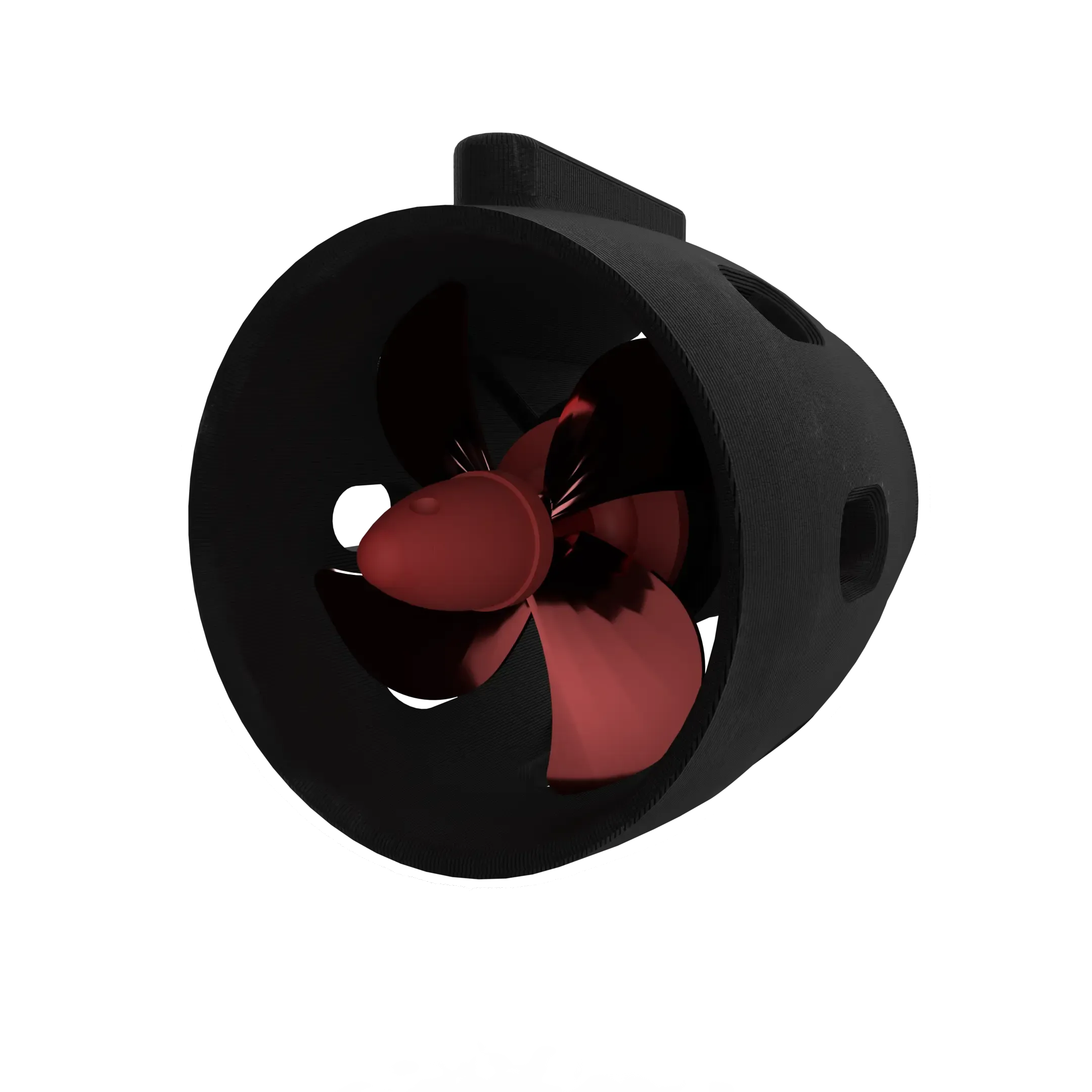

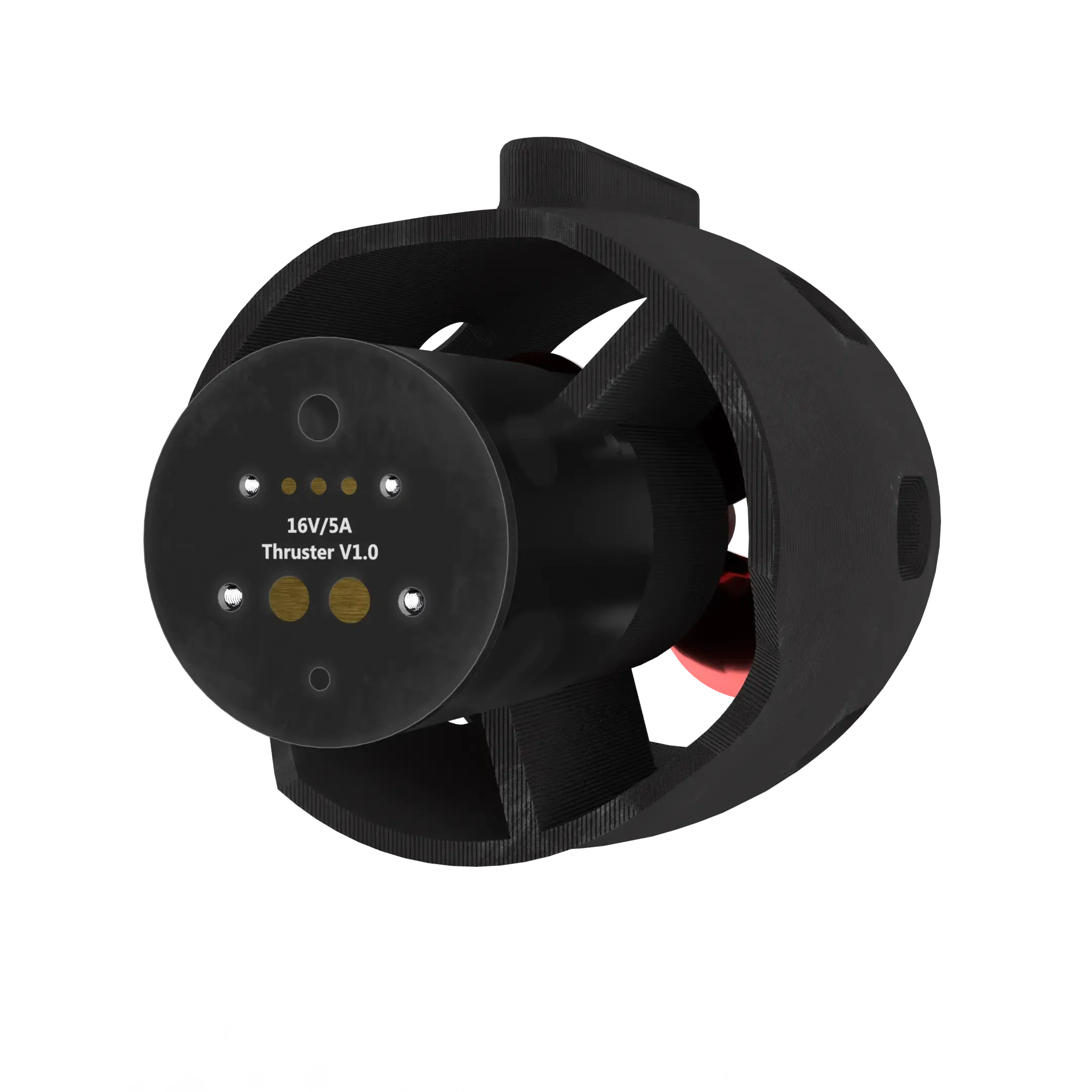

The AquaCore Thrusters are fully waterproof, ESC-controlled BLDC motor modules designed for reliable propulsion in marine and underwater environments. Delivered as sealed, ready-to-deploy units, they eliminate the need for custom motor waterproofing or enclosure design.
Key Features
Why choose the AquaCore Thruster? Below is a list of key characteristics:
- Fully Sealed: Motor, shaft, and electronics are isolated for direct operation in saltwater.
- Integrated ESC: Built-in controller optimized for ambient-water cooling.
- Direct control from AquaCore computers via PWM.
- Robust Construction: Corrosion-resistant design.
- PET-G shell, hardened steel shaft, and resin potting.
- Modular Scaling: Easy to combine multiple units for vectored thrust (ROV/AUV).
Specification
| Parameter | Value |
|---|---|
| Dimensions | ⌀80 mm, L 100mm |
| ESC | BLDC (Brushless DC) |
| Connectors | AquaCore Interface: • 1x 3-pin (PWM Signal) • 1x 2-pin (Power Input) |
| Supply Voltage | 16V DC (from AquaCore power pack) |
| Max Continuous current | 5A |
| Thrust Rating | TBD |
| Propeller type | 4-blade, polymer, ⌀60 mm |
| Materials | PET-G (FDM manufactured) shell. Hardened steel, acrylic & resin module. |
